Unit : each

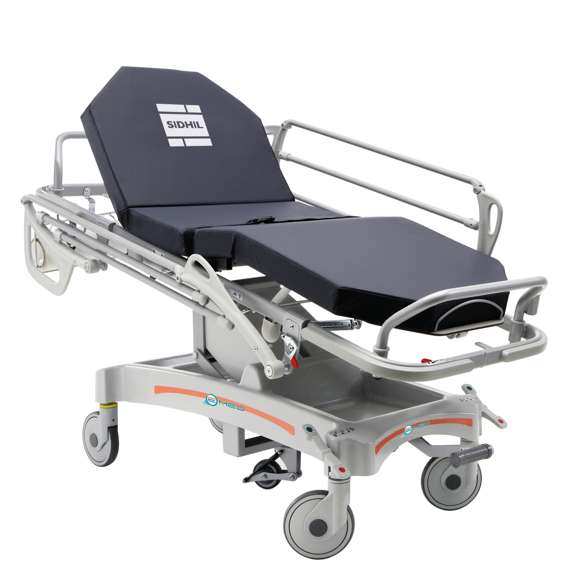

The E-MED 1500 Range are two and four section trolleys available with or without head down (Trendelenburg) positioning. These trolleys have been developed for applications in the acute care environment including A&E, hospital wards, day case surgery, x-ray and general patient transportation.

The trolley is designed with a robust central lifting mechanism for height adjustment allowing x-ray devices (c-arm, for example) to be easily positioned under the backrest and leg rest sections.

Product Features

200mm standard castors with optional antistatic addition, 5th wheel option for easy movement through 360°
Radio transparent surface available as a factory fitted option
Head down (Trendelenburg) positioning up to 12 degrees
A range of optional push handles and side rails available to ensure trolleys meet clinical needs
For ease of use, adjustment levers are located on both sides of the trolley
Full range of accessories available

Product Specification

SKU

Label

Height

5th Wheel

Backrest Adjustment Electrical

Central Braking System

Reverse Trendelenburg

Trendelenburg

Knee Break Adjustment Electrical

No Of Sections

Bed Dimensions (W x L)

Platform Length

Platform Width

Safe Working Load

User Weight Capacity

EMED/1512/KIT

E-Med 1512

51 - 90cm

Optional

Yes

Yes

12°

-12°

Yes

4

70 x 204cm

193cm

58cm

300kg (47st)

265kg (41st)
