Unit : Each

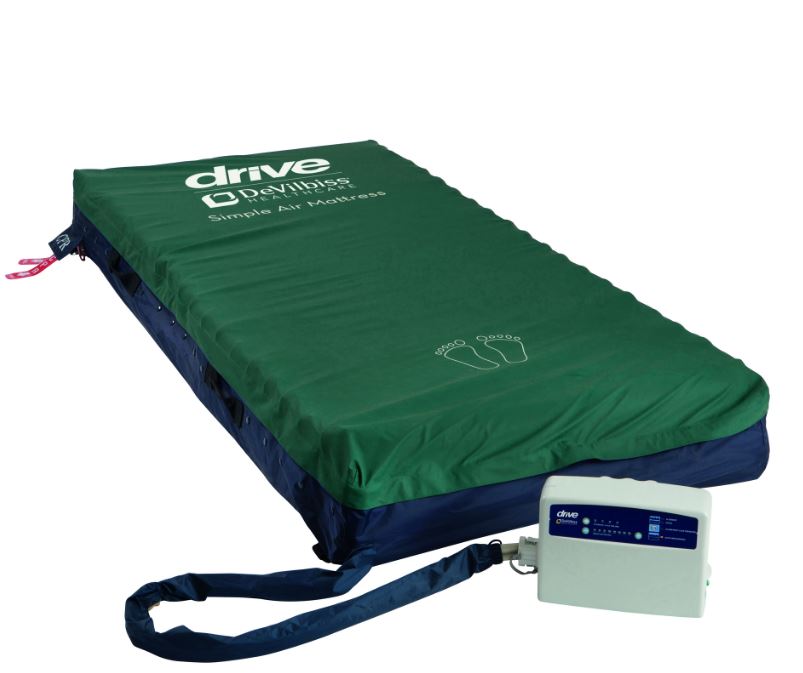

The Simple Air Dynamic Mattress system delivers pressure redistribution to those who are at high risk of pressure ulcer development. For additional patient comfort, alternating cycle times can be adjusted. To aid decontamination protocols, the mattress cover offers a 360° zip, welded seams and is water resistant.
Key features
Features
• Comfort Controls settings
• Max Inflate
• Auto-firm Function
• Alternating Mode
• Static Mode
• 1 in 2 cell cycle
• 10, 15 & 20 min cycles
• Cable Management
• Static Head Section
• Pull tag CPR at head end of mattress
• Transport mode
• Audible and visual low pressure alert

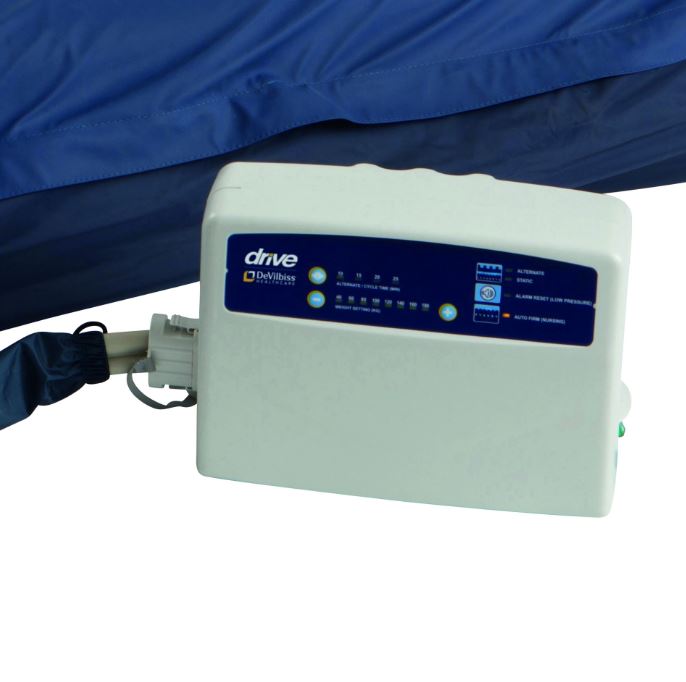

• Pump dimensions: 30 x 10.5 x 22.5cm

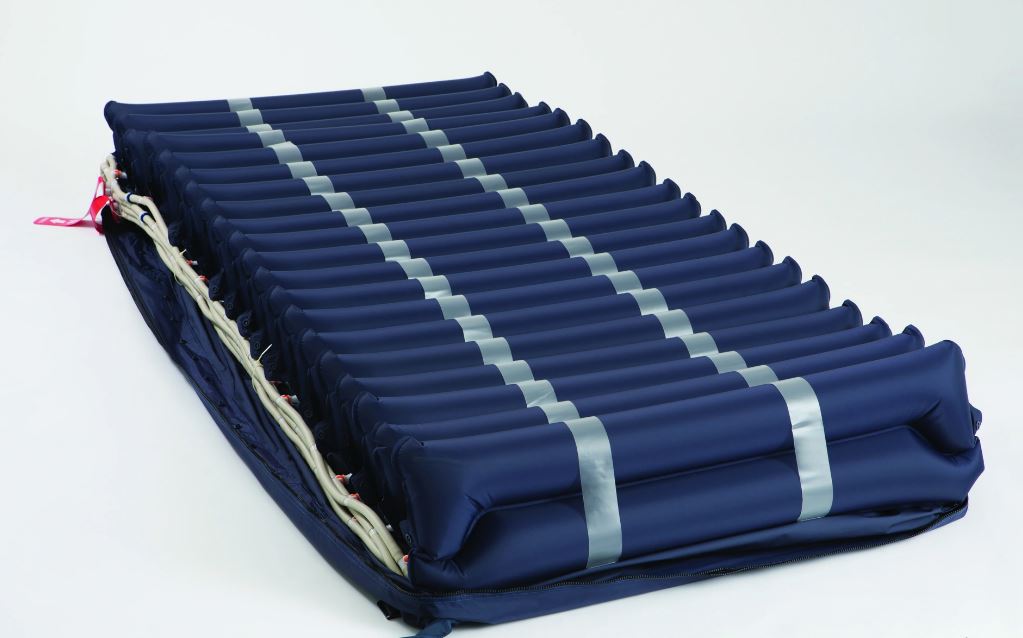

• 20 cells (cell on cell) 3 static head cells & 17 alternating cells
| Spec type | 1001270001 |
|---|---|
| Width | 88cm (34.6") |
| Depth | 20cm (7.8") |
| Length | 200cm (78.7") |
| Cell Cycle Time | 9.5 mins |
| Cell Cycle Type | 1 in 2 (AB Pattern) |
| Cover Material | PU Multi-stretch, Water Resistant, Vapour Permeable |
| Cycle Time | 10, 15, 20 or 25 mins |
| Product Weight | 10.4kg (pump 3.4kg & mattress 7kg) |
| Pump Dimensions (L x W x D) | 30 x 22.5 x 10.5cm |
| Risk Factor | At High Risk |
| Seams | Welded |
| User Weight Capacity | 200kg (31.5st) |
| Product Warranty | 2 years |
